Deploying and Scaling a Dedicated SQL Pool

In addition to the methods described previously in this book for deploying Azure resources, users can deploy a new dedicated SQL pool through Synapse Studio with the following steps:

1. Click on the Manage button on the left-side toolbar in Synapse Studio and click on SQL pools. Click + New to begin creating a new dedicated SQL pool. You can see an example of the SQL pools page in Figure 5.43 (shown earlier).
2. The New dedicated SQL pool page includes four tabs to tailor the workspace configuration. Let’s explore the options in the four tabs.

The Basics tab requires that you set a name and an initial performance level (SLO) for the dedicated SQL pool. The performance level can be set by dragging the scale to the left or to the right. Figure 5.44 is a completed example of the Basics tab.

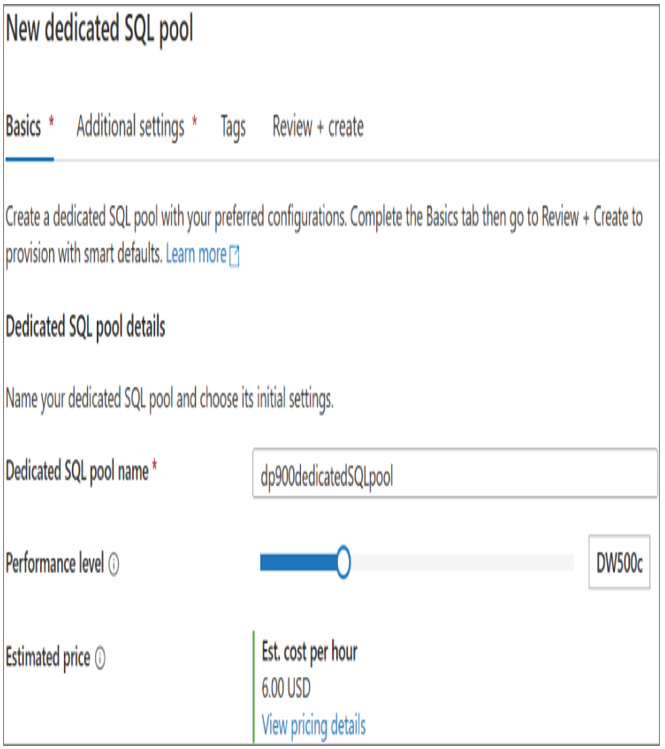

FIGURE 5.44 New dedicated SQL pool: Basics tab

• The Additional settings tab allows you to set the initial state of the dedicated SQL pool, including whether to start with a blank database or from a database backup. Figure 5.45 is a completed example of the Additional settings tab.

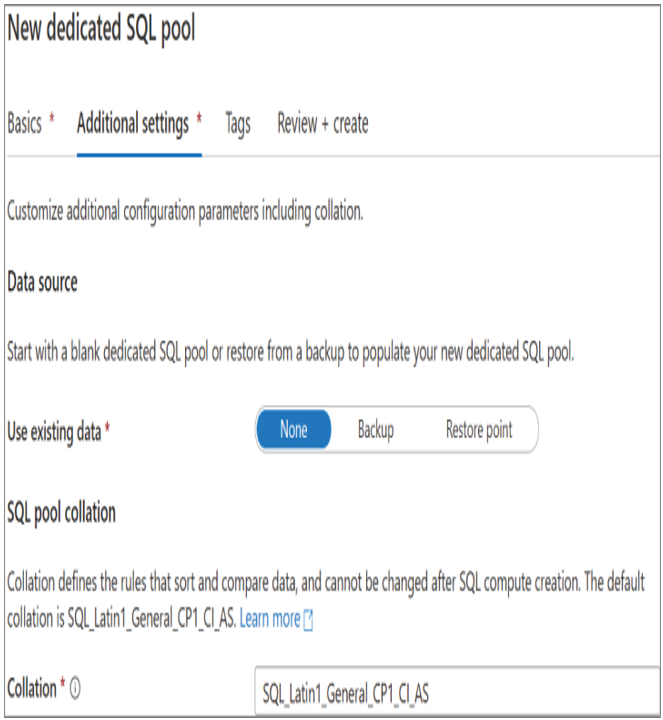

FIGURE 5.45 New dedicated SQL pool: Additional settings tab

• The Tags tab allows you to place a tag on the dedicated SQL pool. Tags are used to categorize resources for cost management purposes.
  • Finally, the Review + Create tab allows you to review the configuration choices made during the design process.

3. If you are satisfied with the choices made for the dedicated SQL pool, click the Create button on the Review + Create tab to begin deploying the new dedicated SQL pool.

As with any PaaS database in Azure, the SLO of a dedicated SQL pool can be easily scaled up or down to meet different workload needs. This can be done through the Azure Portal, Azure PowerShell, T-SQL, or the Create or Update Database REST API. The following is a sample T-SQL script that updates a dedicated SQL pool’s SLO to DW1000c:

ALTER DATABASE dp900dedicatedSQLpool
MODIFY (SERVICE_OBJECTIVE = ‘DW1000C’);

Because compute and storage are separated, dedicated SQL pools can be paused when they are not used to save on compute costs. Users can pause and restart dedicated SQL pools through the Azure Portal, Synapse Studio, Azure PowerShell, and the dedicated SQL pool REST APIs. Pause and restart for dedicated SQL pools can also be automated with Azure Automation runbooks, Synapse pipelines, or ADF. Figure 5.46 illustrates where to find the pause button for a dedicated SQL pool in Synapse Studio. Once the pool is paused, the pause button will be replaced by a resume button.

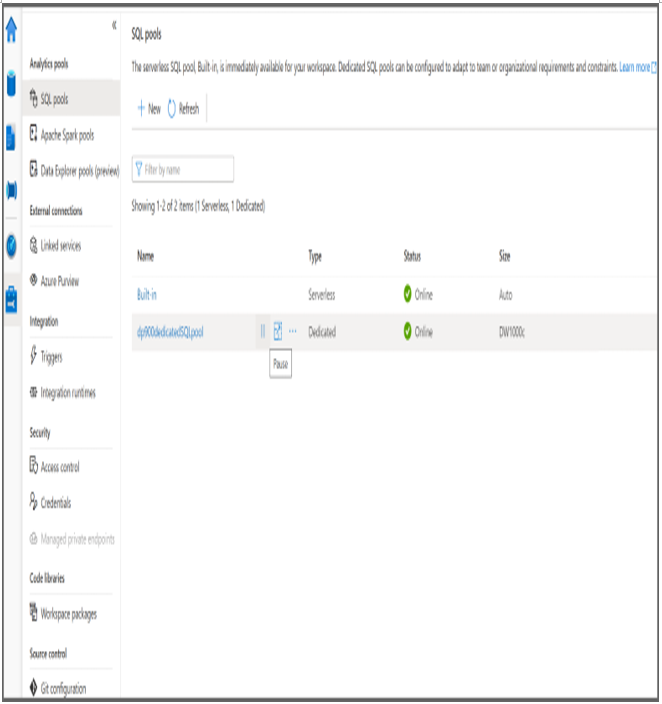

FIGURE 5.46 Pausing a dedicated SQL pool
